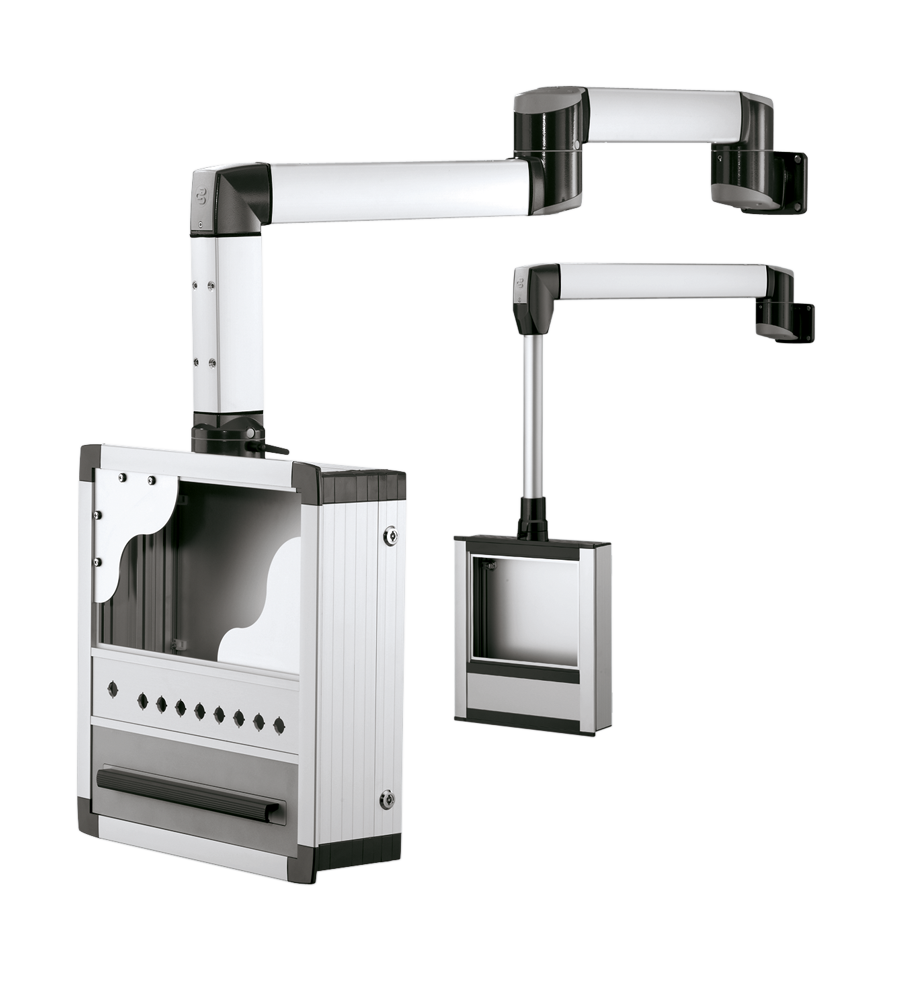

鋁制懸臂系統CS-3000
一般來講，系統構建者期望現代懸臂系統具有多種不同的配置、靈巧悅目的設計且安裝絕對簡便。博恩斯坦的CS-3000系列樹立了市場標準：現代化的工業設計、精心的人體工程學設計和多種組件的完美組合，創造出了創新型的模塊化系統解決方案。
由于CS-3000系列組件的組合方式特別簡單，所以組裝快捷方便，能夠節省系統裝配者的大量時間和成本。
六重強制聯鎖，因此不需要可選的額外的安全螺釘
一個人即可安裝整個系統
一步到位的系統對齊調節
無需拆卸整個系統即可隨時重新調節
CS-3000 HV –有250毫米轉動和內部電纜管道的可積可調節高度的模塊，允許任何用戶最佳調節可視化高度。松開釋放手柄后，氣壓彈簧支撐上下升降。
陽極氧化鋁管，保證了使用壽命長和安全操作
系統偏差點設有安裝開口
不同長度的管子使配置多種多樣
管與系統組件的流暢過渡（極易清潔），構成了時尚簡約的線條
施以涂層的管緊固螺釘密封了螺紋孔，使連接安全可靠
由于將方管改為圓管減小了截面積，從而使控制屏外殼外觀細窄并且可以連接到細窄部分
模塊化的靈活系統，讓您可以升級接頭（即使是在安裝后），如采用適合細窄邊框的轉接頭或采用傾斜轉接頭
防護等級IP65
精心的人體工程學設計，使操作簡單，讓人幾乎覺察不到疲勞
理想的單一廠商供貨的博恩斯坦控制機箱CC-3000, CC-4000 和CC-4000 SL解決方案
| 物料號碼 | 類型 | DWG | STEP文件 | |
|---|---|---|---|---|
| 1013056000 1013050000 |
Straight coupling 48 RAL 9006 White aluminium RAL 7016 Anthracite grey |
 |
 |
 |
| 1015300177 1015300001 |
Coupling RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300178 1015300002 |
Elbow coupling RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300179 1015300013 |
Tilt coupling 15° A RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300180 1015300014 |
Tilt coupling 15° B RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300181 1015300015 |
Tilt elbow coupling 15° A RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300182 1015300016 |
Tilt elbow coupling 15° B RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300183 1015300017 |
Base coupling RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300184 1015300018 |
Tilt base coupling 15° A RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300185 1015300019 |
Tilt base coupling 15° B RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300193 1015300012 |
Tilt adapter (30° infinitely variable) RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300195 1015300008 |
Elbow RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300196 1015300009 |
Elbow, rotary RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300197 1015300020 |
Elbow, reduced RD 48 RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300198 1015300003 |
Top joint RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300199 1015300006 |
Wall joint S RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300200 1015300007 |
Wall joint W RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300201 1015300004 |
Intermediate joint RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300204 1015300010 |
Base / wall flange RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300205 1015300005 |
Base, rotary RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300206 1015300027 |
Large free-standing base RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300207 1015300028 |
Small free-standing base RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
||
| 1015300208 1015300039 |
Tube adapter RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
||
| 1015300209 1015300011 |
Adapter (narrow section) RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300262 1015300263 |
Turn/tilt coupling W, horizontal outlet RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300265 1015300266 |
Turn/tilt coupling S, vertical outlet RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 9806000044 9806000045 |
Adapter plate VESA 75/100 RAL 9006 White aluminium RAL 7016 Anthracite grey |
|
|
|
| 1015300030 | CS-3000 HV module, vertically adjustable 800/150 (RAL 7016 / anodised aluminium) |
|
||
| 1015300043 | Coupling for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300074 | Elbow coupling Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300075 | Base coupling for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300076 | Tilt coupling 15° A for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300077 | Tilt coupling 15° B for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300079 | Tilt elbow coupling 15° B for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300080 | Tilt base coupling 15° A for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 1015300081 | Tilt base coupling 15° B for Siemens SIMATIC Pro? (RAL 7016 anthracite grey) |
|
|
|
| 9521400000 | Lengths 48 x 4 x 250 mm | |
|
|
| 9521401000 | Lengths 48 x 4 x 500 mm | |
|
|
| 9521402000 | Lengths 48 x 4 x 750 mm | |
|
|
| 9521403000 | Lengths 48 x 4 x 1000 mm | |
|
|
| 9524500001 | Lengths 70 x 90 x 250 mm | |
|
|
| 9524500002 | Lengths 70 x 90 x 500 mm | |
|
|
| 9524500003 | Lengths 70 x 90 x 750 mm | |
|
|
| 9524500004 | Lengths 70 x 90 x 1000 mm | |
|
|
| 9524500005 | Lengths 70 x 90 x 1250 mm | |
|
|
| 9524500006 | Lengths 70 x 90 x 1500 mm | |
|
|
| 9524500007 | Lengths 70 x 90 x 1750 mm | |
|
|
| 9524500008 | Lengths 70 x 90 x 2000 mm | |
|
|
| 9524500009 | Lengths 70 x 90 x 1000 mm | |
|
|
| 9524500010 | Lengths 70 x 90 x 2000 mm | |
|
|
| 9806818000 | Coupling head (RAL 7016 anthracite grey) | |
|
|
| Customer-specific | Bent tube (Anodised aluminium) | |
